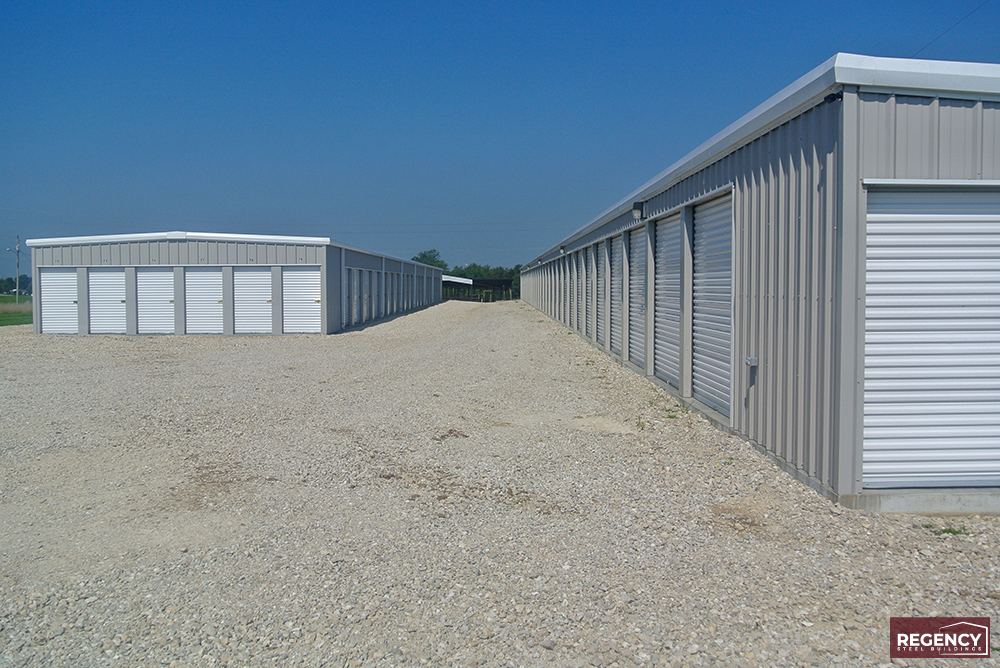

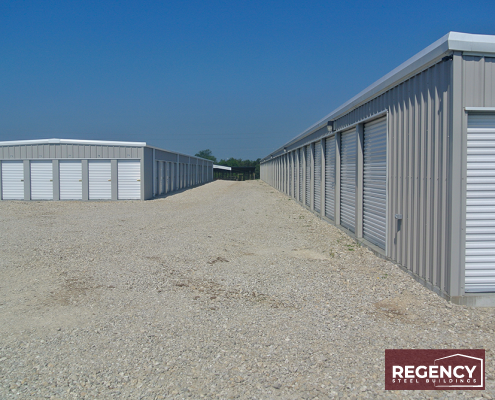

Mini Storage Outlet provided these prefabricated self-storage buildings for a customer in Versailles, Missouri. Together, the pair of prefabricated storage buildings function as a mini storage facility.
Both buildings are crafted from top-of-the-line steel materials and is covered overhead by a corrosion-resistant Galvalume metal roofs with 0.5:12 roof pitches.

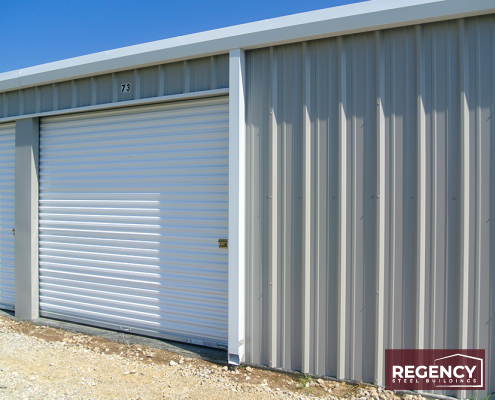

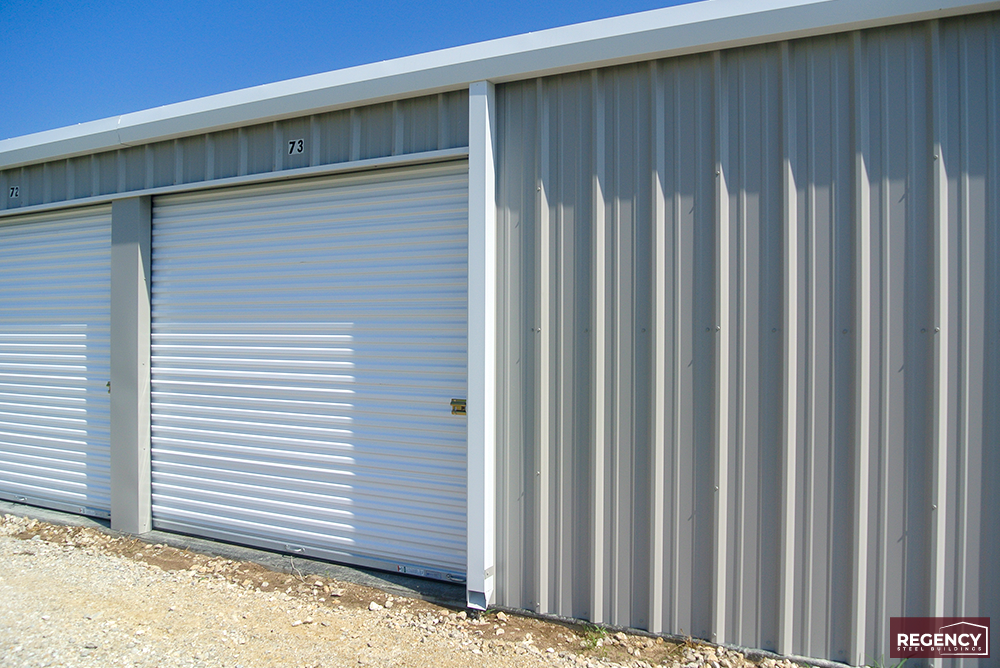

The first mini storage building stands 20’x300’x8.67’, it has an added a vapor barrier in the roof to help prevent the formation of condensation. The prefabricated mini storage is home to a total of (31) units, (29) of which are 10’x20’ with 9’x8’ framed openings and (2) of which are 10’x10’ units, with 9’x8’ openings on one end. Renters access their through (31) 9’x8’ Model 650 steel mini storage doors.

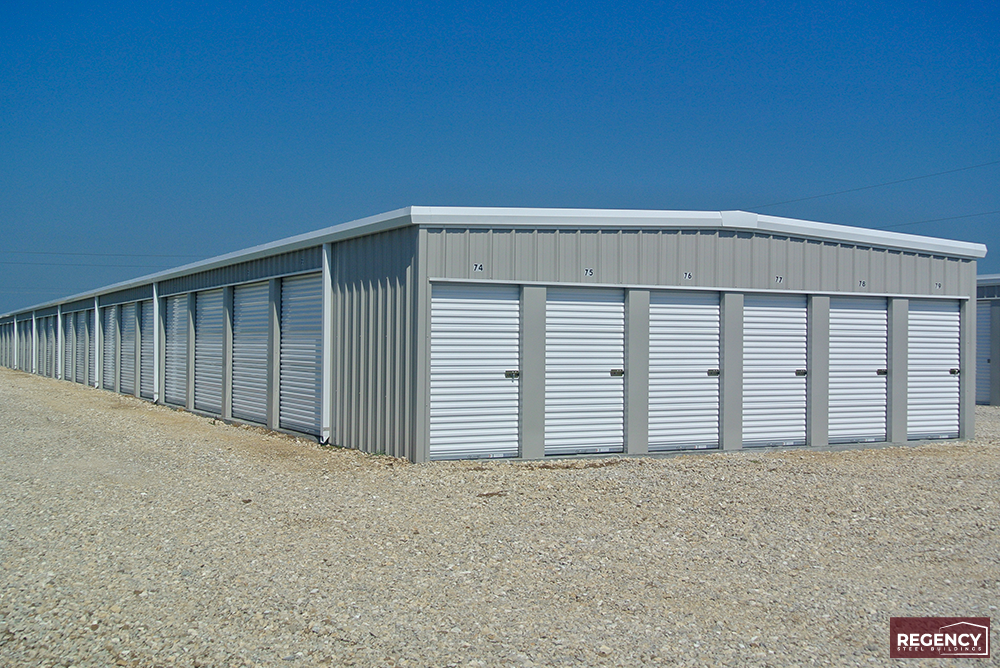

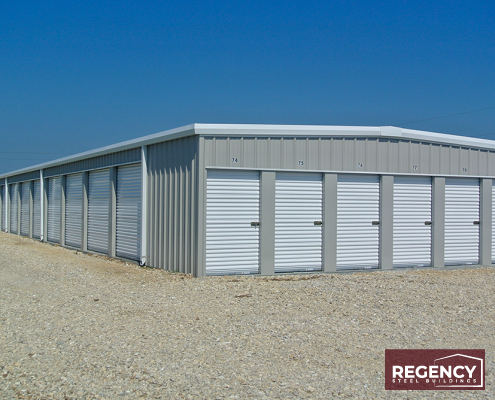

The second building is adorned with gray paint and stands 30’x220’9.5’ once fully erect. Inside the building are a total of (50) framed openings varying in terms of size and function. Included are (6) 4’x7’ openings enclosing (6) 4’x7’ Model 650 mini storage doors, (22) 8’x7’ openings enclosing (22) 8’x7’ Model 650 mini storage doors and (22) 9’x8’ openings enclosing (22) Model 650 mini storage doors.
Additional aspects and special features of the mini storage building include Missouri engineer-stamped drawing, wedge anchors and fasteners and 29-gauge partition panels with a Galvalume finish.
Both buildings were designed with a wind speed of 90 mph and a snow load of 30 lbs. serving as additional project features, included to enhance durability given the typical climate and weather patterns of the region.
Building Features
Location | Versailles, Missouri |
County | Morgan County |
Job Type | Exterior Access Mini Storage Buildings |
Number of Buildings | 2 |
Total Square Footage | 12,600 |
Number of Units | 81 |
Building Sizes | Mixed |
Roof Pitches | .5:12 |
Roof Sheeting | 26 Gauge Galvalume PBR |
Wall Sheeting | 26 Gauge PBR |
Wind Speed | 90 mph |
Snow Load | 30 psf |
Building Code | IBC 12 |
Doors | (53) 9’x8’ Janus Model 650 Roll Up Doors (22) 8’x7’ Model 650 (6) 4’x7’ Janus Model 650 Roll Up Doors |
Additional Features | Gutters and Downspouts |
A part of Morgan County in central Missouri, the city of Versailles is situated about 61 miles outside Lebanon and 41 miles from Jefferson City.
